Basic components
OUR STANDARDS :
- Pump body Cast iron
- Cover/diffuser/flange Cast iron
- Impeller Cast iron
- Shaft 420 stainless steel
- Gasket Aramid
To better respond to your requirements, our expertise in the metalworking industry is at your service: Stainless steel316, Hastelloy, Duplex…
MECHANICAL SEAL
OUR STANDARDS :
- Assembly Simple
- Lubrication Process fluid
- Friction faces SiC/C/C
- O-ring FPM
We’ll help you define the best type of assembly and dynamic sealing adapted to your application.

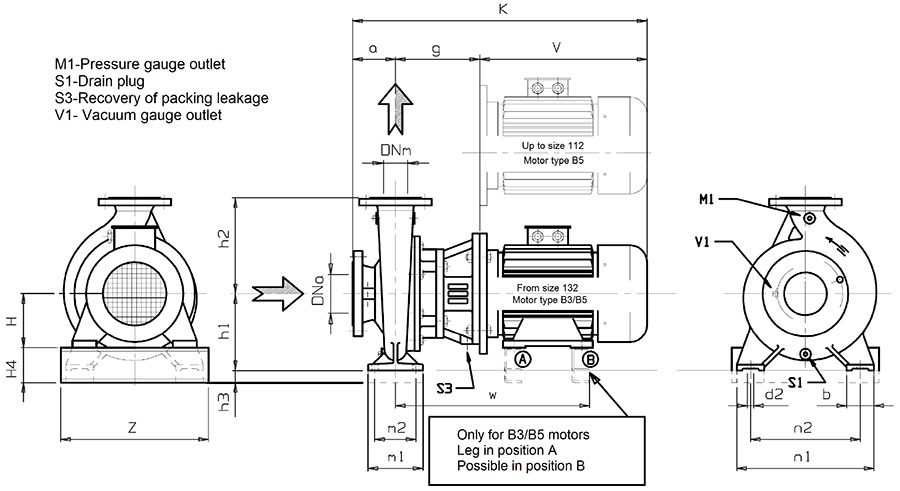

Pump inlet and outlet connections
Motor
- Three-phase (other voltage on request)
Paint
- Primer + high temperature paint
